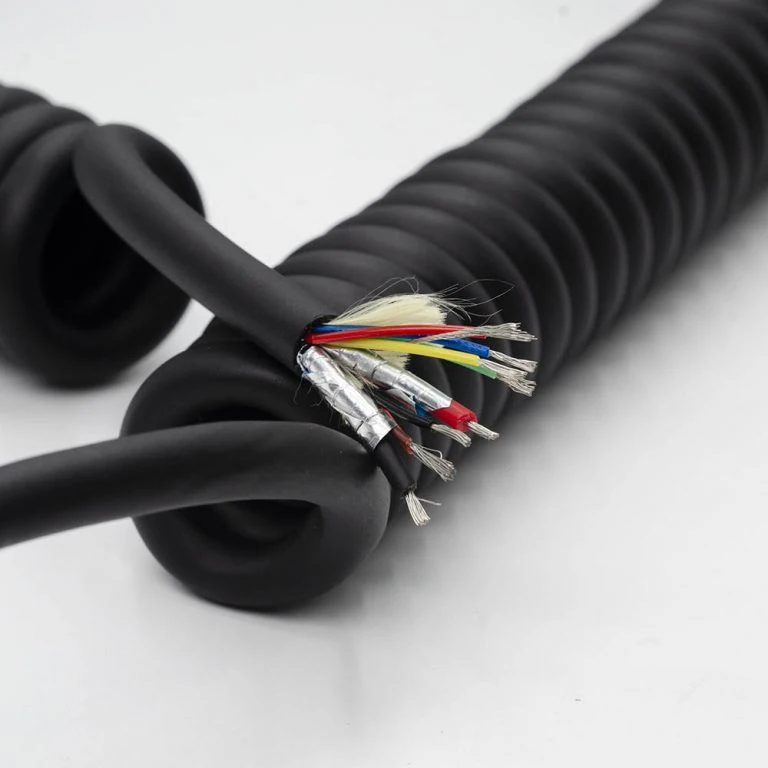

OD7MM AED 2 Core 22AWG+7 core 26AWG 9 Lead Coil Wire Medical TPU Jacket

Conductor:Tinned copper

Insulator:PP/TPE

Wrap:Aluminum Foil(outwards)

Cabling:Drain wire(26AWG)+kevlar+Nylon+PTFE(25%)

Jacket:TPU 85A( Biocompatible)

OD:7.0MM

Technical Specification



Conductor Material Tinned copper (2C)22AWG Tinned copper (7C)26AWG
Construction 19/0.16TC 19/0.10TC
Outer diameter 0.8mm Ref 0.50mm Ref
Insulator Material TPE PP
Average Thickness 0.76 Ref 0.25 Ref
Min Thickness 0.60 Ref 0.20 Ref
Outer diameter φ2.3±0.08 φ1.0±0.05
Color RED/BLK Green/Blue/Yellow/Red /Black/Brown/Orange
wrap Material Aluminum Foil(outwards) Right
Diamermet φ2.35
Cabling Direction pitch Right/45±7mm
Filler Drain wire(26AWG)+kevlar+Nylon+PTFE(25%)
Outer diameter φ5.05mm Ref
Outer Jacket Material TPU 85A( Biocompatible)
Average Thickness 1.27mm Ref
Min Thickness 1.0 Ref
Outer diameter φ7.0±0.20
Color/Cosmetic BLACK/smooth and matt
Properties
ITEM SPECIFICATION
Conductor Resistance(@20°c) 22AWG-60Ω/KM MAX 26AWG-131Ω/KM MAX
Insulation Resistance(@20°c) 500 M Ohms/km, min
Dielectric Strength 22AWG-15000V DC /1 Min 26AWG-3400V DC /1 Min
