Miniature AED cable with 8 core to connect Power unit and Pad of defibrillator. 2 core for High Voltage and 6 cores for signal.Teflon Insulator ,TPU Jacket.OEM Factory
Overview of thin defibrillator cable AED (Automated External Defibrilattor) is no more a devices only used in Hospital or ambulance by professional operators.Now adays ,in
Features Telfon Insulator for all the wires,bright TPU Jacket 1*20AWG high voltage wire 4*24AWG singla wire Technical Specification 1:Specification：134/0.07BC*1C+60/0.07BC*4C+PTFE 5.2 MM TPU 2:AWG&Matreial Component Component

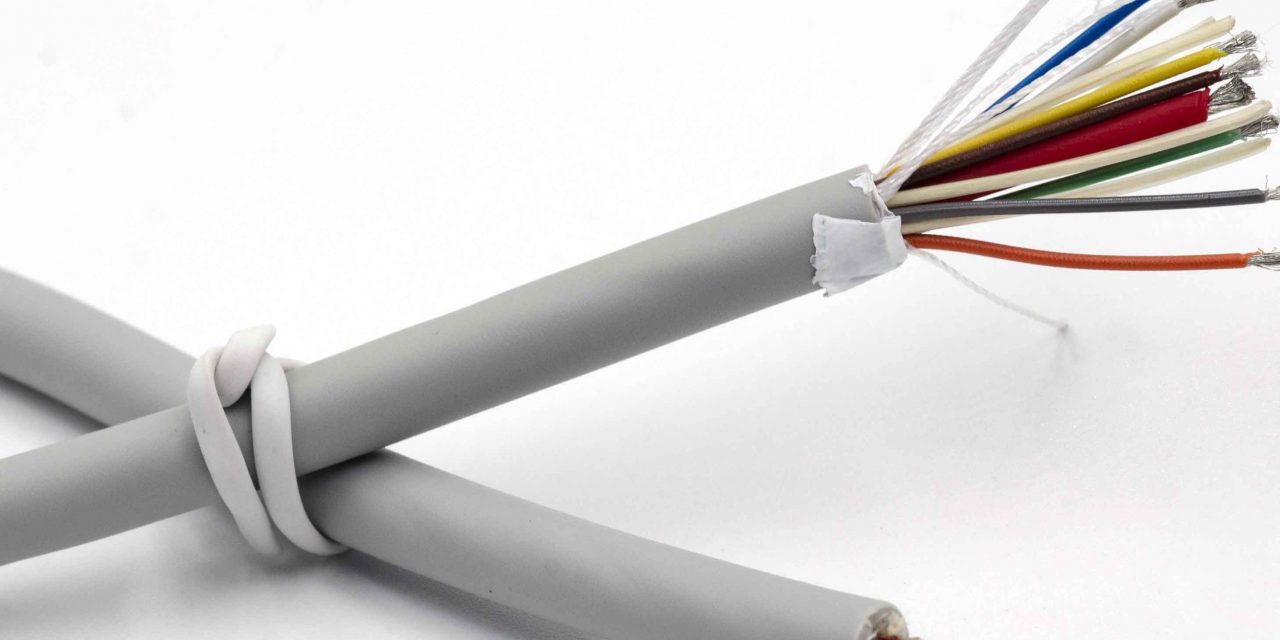

this 1+4 core coil wire is the trunk cable developed to interconnect the Power unit and Paddle of the AED.1 High voltage wire coated with Aluminum foil lined with drain wire ,and 4 core for signal.
this 2+7 core coil wire is the trunk cable developed to interconnect the Power unit and Paddle of the AED.2 High voltage wire coated with Aluminum foil lined with drain wire ,and 7 core for signal.
This Flat AED cable used to interconnect the Power unit and Electrodes Pads/Gel of ZOLL defibrillator.AED Pads is more and more becoming a mainstream in emergency rescure heartstart
8 core Defibrillator leads -Branch Technical Specification Item (specification) conductor Material Tinned copper + Kevlar(1c) Tinned copper +Kevlar (7c) specification 165/0. 05TC + 30/0. 05TSN

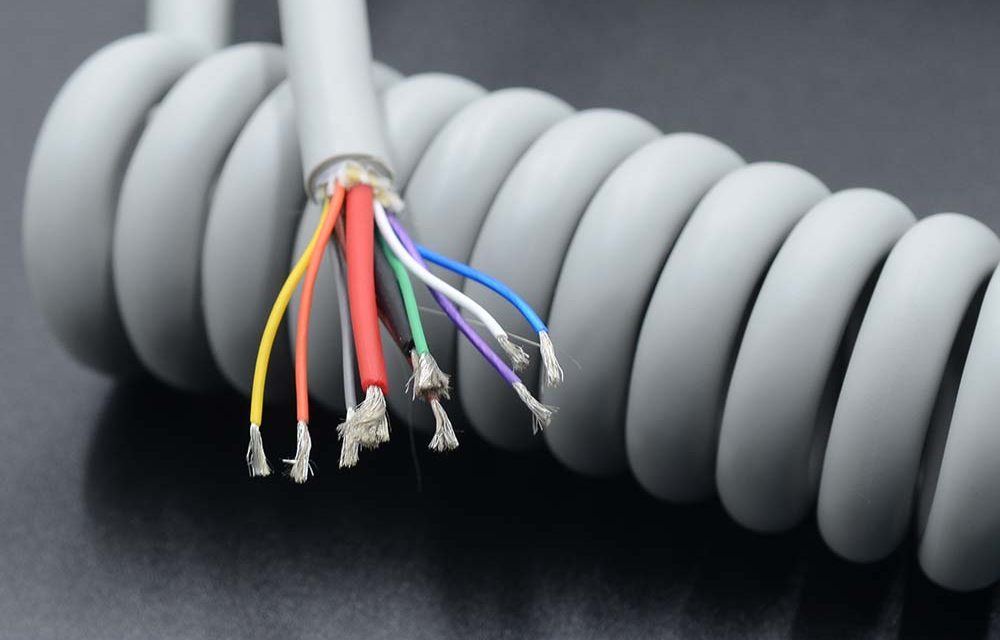

AED 10 lead coil wire-co210x Developped for” Automated External Defibrillator” Features For Common AED cable(usually 3.5-5 meters),if the cable is too long,its voltage-decrease with the
1. ATTENUATION – Attenuation is loss of power or signal expressed in decibels; it is commonly written and spoken of as dB/100 ft. at a specific frequency. An example is RG 8A/U which has a loss of 5.5 dB/100 ft. at 400 MHz. 2. FREQUENCY – Frequency is the term designating the number of reverses or cycles...
The most detailed guide to help you choose the right connectors for different brands compatible NIBP from OEM manufacturer at best Price.the NIBP Connector price is not listed,you can refer to public price,and by around 50%，then it is near to our price. Such as BP15 NIBP Connector priced at 8USD,the compatible connector is around 4USD/PC with...
Miniature AED cable with 8 core to connect Power unit and Pad of defibrillator. 2 core for High Voltage and 6 cores for signal.Teflon Insulator ,TPU Jacket.OEM Factory
Overview of thin defibrillator cable AED (Automated External Defibrilattor) is no more a devices only used in Hospital or ambulance by professional operators.Now adays ,in Airport,Metrol station,bus station,it is a indispensable devices for first aid. Thin Defibrillator cable can save space for AED stock.500K using time greatly save the maintainance cost. Defibrillator cable technical specification Conductor Material...
Features Telfon Insulator for all the wires,bright TPU Jacket 1*20AWG high voltage wire 4*24AWG singla wire Technical Specification 1:Specification：134/0.07BC*1C+60/0.07BC*4C+PTFE 5.2 MM TPU 2:AWG&Matreial Component Component 1 Component 2 Conductor Material BARE COPPER BARE COPPER AWG 20 24 Construction 134/0.07BC 60/0.07BC Pitch mm 15±1 8±2 Pitch Direction left left Stranded O.D mm 1.0 0.65 Insulation Material...
this 1+4 core coil wire is the trunk cable developed to interconnect the Power unit and Paddle of the AED.1 High voltage wire coated with Aluminum foil lined with drain wire ,and 4 core for signal.
This Flat AED cable used to interconnect the Power unit and Electrodes Pads/Gel of ZOLL defibrillator.AED Pads is more and more becoming a mainstream in emergency rescure heartstart
8 core Defibrillator leads -Branch Technical Specification Item (specification) conductor Material Tinned copper + Kevlar(1c) Tinned copper +Kevlar (7c) specification 165/0. 05TC + 30/0. 05TSN + 200DKevlar 30/0. 08TC + 200DKevlar Twisted gauge 22AWG 26AWG Complete diameter 0.80MM 0.51MM insulation Material TPE PP thickness 0.6 0.17 diameter 2. 0 ± 0.05 0.85 ± 0.03 colour...
AED 10 lead coil wire-co210x Developped for” Automated External Defibrillator” Features For Common AED cable(usually 3.5-5 meters),if the cable is too long,its voltage-decrease with the length will soon make the voltage not enough for AED. According to some of many customer,s testing ,within about 9 meters,voltage is enough for their devices This design is 1-Million...
