As a Ultrasound cable supplier for Probe manufacturers and Repair service provider,We are sharing some projects we have made to guide you choose a matchable ultrasound cable for your Ultrasound Probe Assembly Business or Ultrasound Transducer Repair Cable service.
Features
Ultrasonic transducer cables are Featured with : Ultra-soft, small diameter, clear imaging, high accuracy, aesthetically pleasing appearance, wire gauge 38~46AWG.
The cable used by the ultrasonic transducer is a multi-core high-shielding cable with high quality requirements. The workmanship is very fine. There are hundreds of wires in the cable, which are as thick as hair. Due to the multi-directional use of ultrasonic transducer, the bending and torsion of cable will cause the insulation layer of the protective cable to break and break, resulting in the damage of the shielding layer inside and the broken signal line, and the image will cause interference and defect.
1.Thinner than a human hair, our copper alloy wire strands have superior strength and flexibility.
2.The products are subject to stringent tests, including continuous bending, pulling and twisting more than 300,000 cycle times with in-house testing conditions.
3.A wide range of probe cables, ranging from low capacitance types of up to 46AWG and high capacitance types of up to 48AWG, are available. They are not only fine, but are also designed to keep excellent transmission performance with lower loss using highconductivity copper-alloy conductors and thinner formed insulation with low-dielectric constant.
Applications
Applications: Medical ultrasound probes (suitable for human or animal use), industrial ultrasound probes.
This ultrasound transducer cable connects the main body of ultrasound diagnostic equipment and the probe used for echographic investigation. It is lightweight, excels in elasticity and flexibility, and has high-quality electric characteristics, realizing ease of handling and high-definition images, thereby contributing to the development of medical equipment.
Guide To Some Brands
Specification | Capacitance | Colors | Compatible Brands |
---|---|---|---|
200Cx42AWG+4CX30AWG | 50pF | White | GE |
138Cx42AWG+8Cx30AWG | 50pF | Ivory White | Mindray |
162Cx42AWG | 50pF | Ivory White | Mindray |

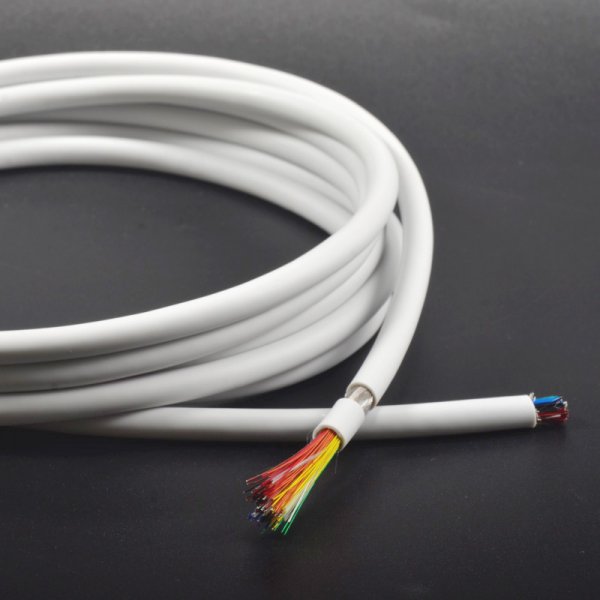

130Cx42AWG | 50pF | Ivory White | Mindray |
198Cx42AWG | 60pF | Cool Gray 2C | GE |
130Cx40AWG | 60pF | Cool Gray 2C | GE |
130Cx42AWG | 60pF | Cool Gray 2C | GE |
198Cx44AWG | 60pF | Cool Gray 2C | GE |
102C×42AWG | 60pF | Cool Gray 2C | GE |
198Cx42AWG | 60pF | Cool Gray 2C | GE |
128C×42AWG+10CX36AWG Coaxial | 60pF | Cool Gray 2C | GE |
70Cx38AWG | 110pF | Cool Gray 2C | GE |
192Cx42AWG+12C×32AWG | 110pF | Cool Gray 4 | GE |
138Cx42AWG+8CX30AWG | 110pF | White | GE |
130C×38AWG | 110pF | Ivory White | GE |
130Cx40AWG | 110pF | Ivory White | GE |
82Cx38AWG | 110pF | Ivory White | GE |
266Cx43AWG | 60pF | Cool Gray 3C | GE |
Advantages
Advantages: Meets biocompatibility standards, excellent interference resistance, flexible and convenient, strong fatigue resistance. Low capacitance during our physical foamed technology.
We can Custom design, development, and manufacturing available based on customer requirements or samples from customers. It is impossible for us to know all brands,s probe,specification,if you can send us a sample,we can duplicate it and improve it.
The following are some examples of ultrasonic probe cables
-
Ultrasound probe cable
204 wires medical ultrasound probe cable with 200C*42AWG coax(50pF) Plus 4C*30AWG
Read more -
Ultrasound probe cable
198 Wire Ultrasonic Transducer Cables With 44AWG Coax cable-60pF OD 7.6mm
Read more -
Ultrasound probe cable
198 Wire Ultrasound Probe Cable Physical foamed 42AWG coaxial cable-60pF
Read more
