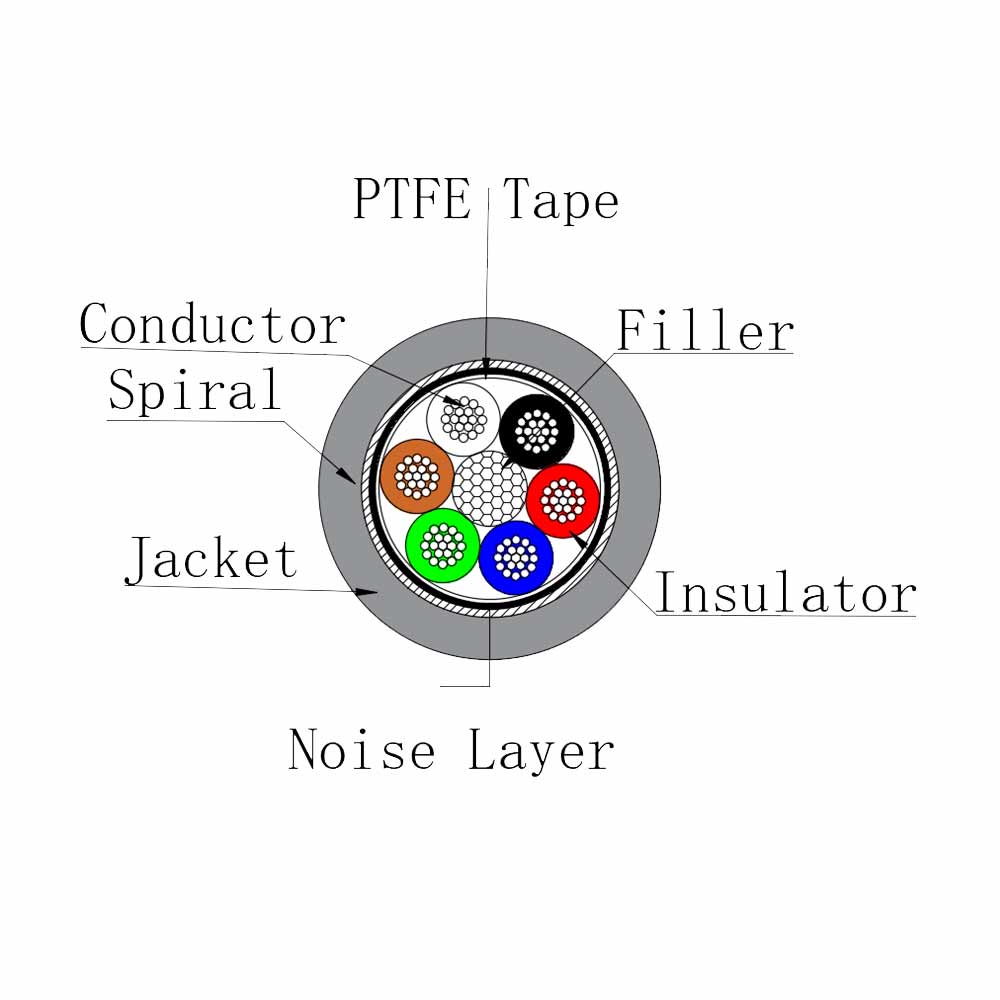

OD5.5MM 25 Awg 6 Conductor Low Noise Shielded Cable For ECG Cable Assembly

Condoctor:TINNED COPPER

Insulation:PP

Filler: Cotton Thread

Separator:PTFE Tape

Noise layer:Conductive PVC

Braid Shield:Tinned copper

Jacket:TPU5040

OD:ø5.5士0.10MM

6 Core Shielded Cable is widely used as trunk cable for 6 Lead ECG,this Cable have a TPU Jacket,OD 5.5mm and an overall Low Noise layer and Spiral shield.

We also custom manufacture other specification 6 core shielded cable,with different conductor materials,gauge,jacket…

Technical Specification

Items Specification
Products name 25 awg 6 conductor shielded cable for ECG cable Assembly
Model EC206S-5.5
Conductor Material TINNED COPPER
Specification 19/0.1 TC
Insulation Material PP
Nom.Thickness 0.2
Nom.O.D. ø1.0士0.03
Colour White/Black/Red/Green/Brown/Blue
Filler Material 10S/10  Cotton thread
Separator Material PTFE Tape
Noise Layer Material Conductive PVC
Nom.Thickness
Nom.O.D. ø3.6士0.08
Shield Material Tinned copper
Specification 80士5/0.10TC
Coverage >90%
Jacket Material TPU (5040)
Nom.Thickness
Nom.O.D. ø5.5士0.10mm
Colour Gray
