OD2.0MM 2 Core 30awg Shielded Cable For Two Lead ECG Bared Copper Conductor

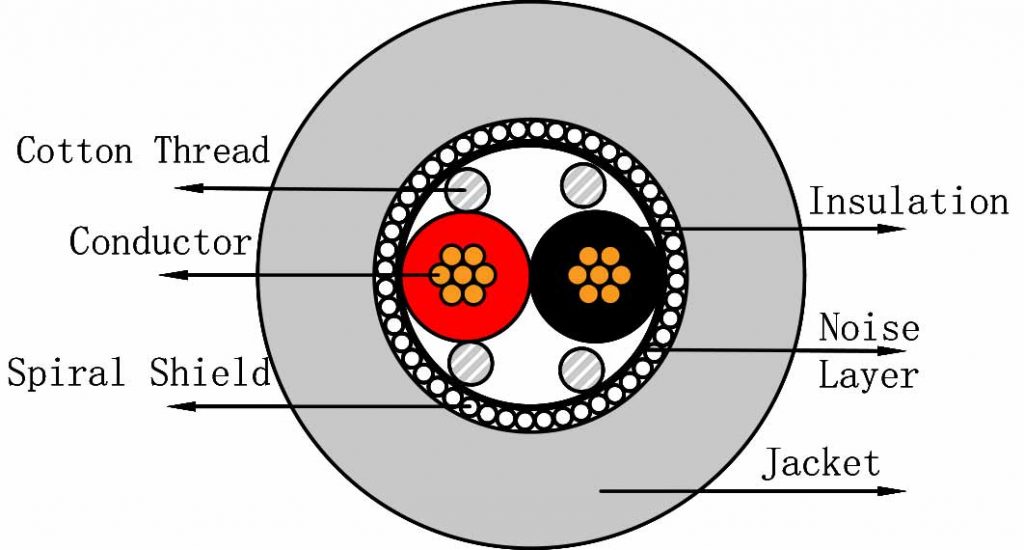

Condoctor:Bared Copper  30AWG

Insulation:PVC

Filler:Cotton Thread

Noise layer:Semiconductive PVC

Spiral Shield:Tinned copper

Jacket:TPE Medical

OD:ø2.0士0.05

This 2 Core Shielded Cable with noise layer is intended for applications,where the signal is very weak,such as two lead ecg monitoring,or audio signal stransition (2 core shielded audio cable ).

The Conducting layer(noise layer) can reduce the noise caused by movement (triboelectric noise)

Technical Specification

Products name 2 core shielded cable-2 Lead ECG cable
Model EC202S-002
Conductor Material Bared Copper
Specification 26/0.05BC  30AWG
Insulation Material PVC
Nom.Thickness
Nom.O.D. ø0.6士0.03
Colour Black/Red
Filler Material Cotton Thread
Conducting Layer Material Semiconductive PVC
Nom.Thickness
Specification ø1.35士0.05
Colour Black
Shield Material Tinned copper
Specification 75士3/0.05TC
Coverage >90%
Jacket Material TPE Medical
Nom.Thickness 0.5
Nom.O.D. ø2.0士0.05
Colour Gray
