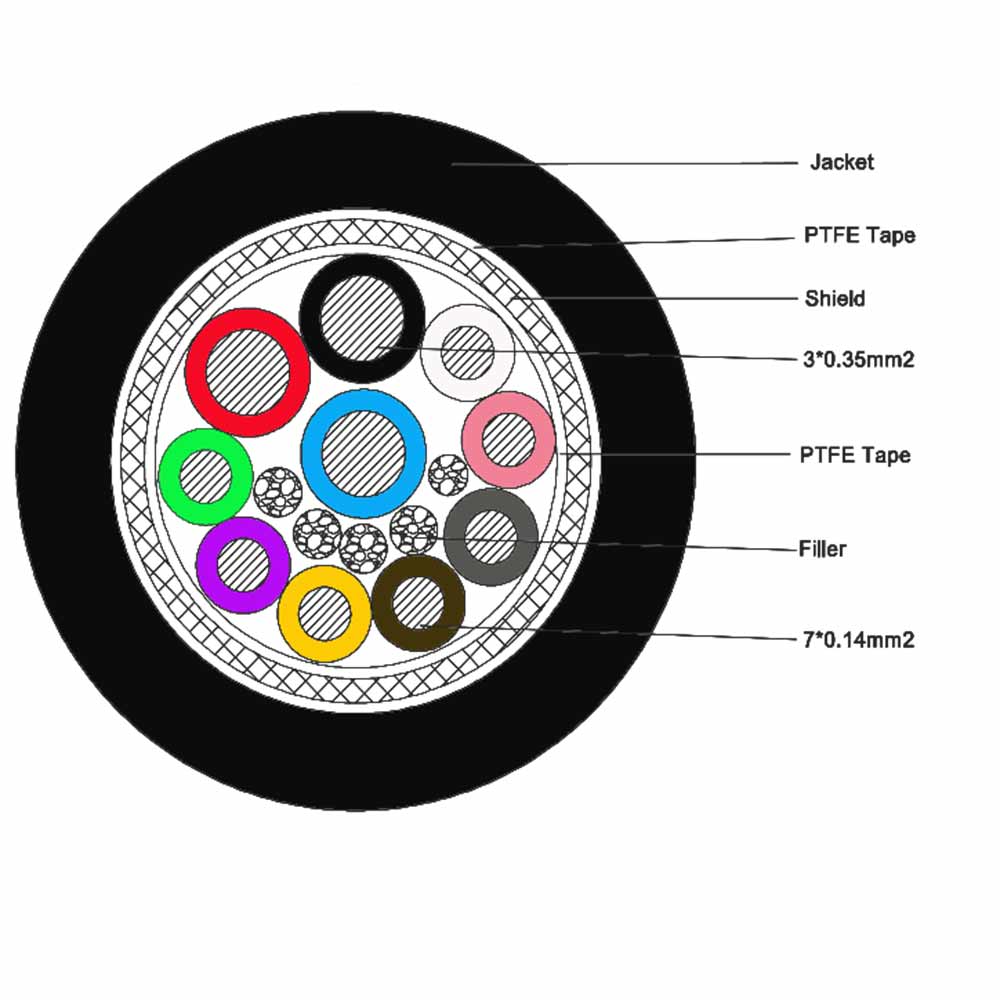

OD6.75MM 10 Core Wire Medical Silicone Cable With PFA Insulation and Braided Shield

Inner Conductor:Tinned copper

Insulation:Teflon

Filler:Kevlar

Wrapped:PTFE Tape

Braiding Shield:TC Braiding

Jacket:Medical Silicone Rubber

Outer Diameter:6.75mm±0.15mm

Category:

10 Core Wire Medical Silicone Cable With PFA Insulation and Braided Shield includes : 3 core 22 awg teflon wire (PFA) and 7 core 26 awg teflon wire.Medical Silicone Jacket.

It is a flexible cable and suitable for High temperature and hash environment

Technical Specification

Component 7 core  26 AWG 3 core   22 AWG
Condoctor Material Tinned copper Tinned copper
Construction
Pitch mm 7±2 12±2
Stranded O.D mm 0.5 0.8
Insulation Material Teflon Teflon
O.D mm 0.90±0.05 1.20±0.05
AVG. Thickness mm
Min. Thickness mm
Color White/Green/Purple/Orange/ Brown/Grey/Pink Red/Black/Blue
Assemly Pitch mm
Filler Kevlar
wrapped PTFE Tape
Outer Shield Material 0.08TC
Coverage Braid , 90%Min.
wrapper Material PTFE Tape
Jacket Material Medical Silicone Rubber
O.D mm 6.75±0.20
AVG. Thickness mm 1.0
Min. Thickness mm 0.8
Color  Black/Custom
