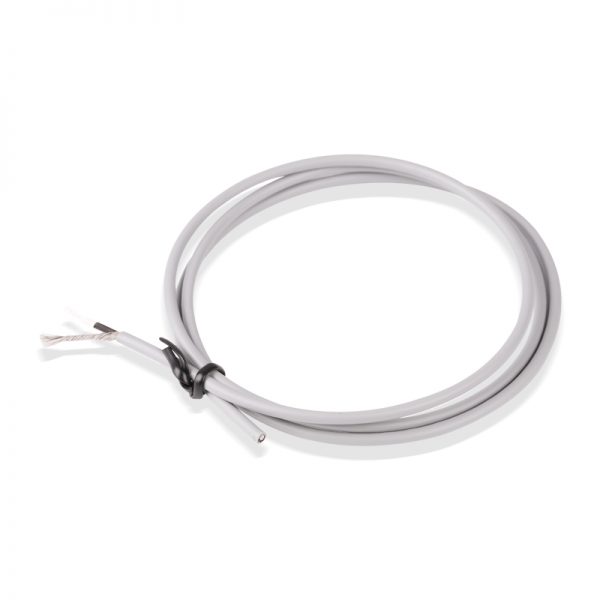

ECG EKG Lead WireSmall OD Single Lead Shielded Raw Ecg Ekg Cable-EC201S-007
ø2.20士0.10;TPU (5040);Silvered Tinsel+KEVLAR
Tinsel is widely used when the application enviroment need the cable to be flexible.Tinsel，s Resistance is bigger than copper wire .there are two types of Tinsel used a lot:one is Silver-plated tinsel;another is Tinned tinsel. Considering the Tinsel Resistance ,Small OD and Flexibility.Silver plated Tinsel is used more than tinned tinsel.
Description
Technical Specification
| Specification | |||||||||||
| 1:Specification：7/0.23 Silver-plated Tinsel+200DKEVLAR+52/0.08TC*1C 2.20 MM TPU | |||||||||||
| 2:AWG&Matreial | |||||||||||
| Component | Component 1 | ||||||||||
| Condoctor | Material | 7/0.23 Silver-plated Tinsel+200DKEVLAR | |||||||||
| AWG | 24 | ||||||||||
| Construction | 7/0.23TC+200D | ||||||||||
| (Pitch)mm | 8±2 | ||||||||||
| Pitch Direction | Left | ||||||||||
| Stranded O.D | 0.65 | ||||||||||
| Insulation | Material | PP | |||||||||
| O.D ( mm) | 1.05-/0.03 | ||||||||||
| AVG. Thickness ( mm) | 0.20 | ||||||||||
| Min. Thickness ( mm) | 0.16 | ||||||||||
| Color | White | ||||||||||
| Conductive layer | Material | Conductive PVC | |||||||||
| O.D( mm) | 1.3±0.03 | ||||||||||
| AVG. Thickness ( mm) | 0.12 | ||||||||||
| Min. Thickness ( mm) | 0.10 | ||||||||||
| Color | Black | ||||||||||
| Outer shield | Material | TINNED COPPER | |||||||||
| Type | Spiral 52±3/0.08 | ||||||||||
| Coverage | 90% | ||||||||||
| Jacket | Material | TPU 5040 | |||||||||
| O.D ( mm) | 2.2±0.10 | ||||||||||
| AVG. Thickness ( mm) | 0.37 | ||||||||||
| Min. Thickness ( mm) | 0.29 | ||||||||||
| Color | Grey | ||||||||||
| N/A | |||||||||||
| 4.Electronic properties | |||||||||||
| 1. The maximum conductor resistance: 0.80Ω/M; 2. Insulation resistance: DC500V insulation above 500 (test sample wire 3m) 3. Bending test: load 200g, lifting height 300mm, fixture round angle R12.7mm, swing speed 30 times/min 2*90°), 5000 times or more, no short, open circuit and external insulation damage. 4. High voltage test: core wire and core wire, core wire and shield AC1000V resistance, leakage current 0.25mA/M/MIN. |
|||||||||||
