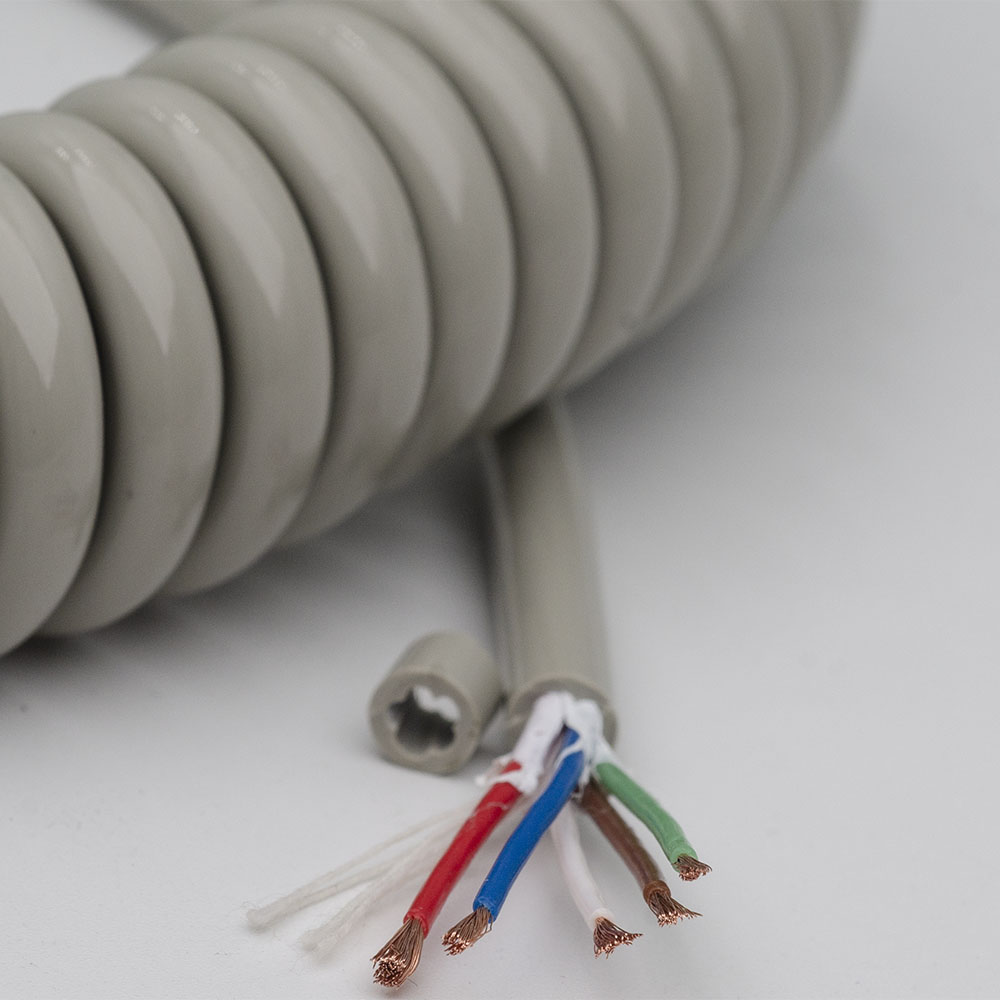

Coil wireTeflon AED cable with 1 high voltage wire and 4 signal wire OD 5.2mm AE1H4S

Features

Telfon Insulator for all the

wires,bright TPU Jacket

1*20AWG high voltage wire

4*24AWG singla wire

1:Specification：134/0.07BC1C+60/0.07BC4C+PTFE 5.2 MM TPU
2:AWG&Matreial
Component		Component 1	Component 2
Conductor	Material	BARE COPPER	BARE COPPER
	AWG	20	24
	Construction	134/0.07BC	60/0.07BC
	Pitch mm	15±1	8±2
	Pitch Direction	left	left
	Stranded O.D mm	1.0	0.65
Insulation	Material	FEP	FEP
	NO of wire	1C	4C
	O.D mm	1.37±0.05	1.2±0.05
	AVG. Thickness mm	0.16	0.25
	Min. Thickness mm	0.12	0.20
	Color	RED	BLUE、GREEN、BROWN、WHITE
Filler	Material	COTTON THREAD
Cabling	Pitch mm	48±1
	Material	FILLER+ALL CORE
Wrap	Material	PTFE
	coverage	25%
Jacket	Material	TPU 4394
	O.D mm	5.2±0.15
	AVG. Thickness mm	0.65
	Min. Thicknessmm	0.52
	Color	Bright Gray
	Mark	N/A
3.Cross Drawing		4.Electronic properties
		1、WORKING VOLTAGE0.25mm²：250V 2、WORKING VOLTAGE0.5mm²：8000V.
