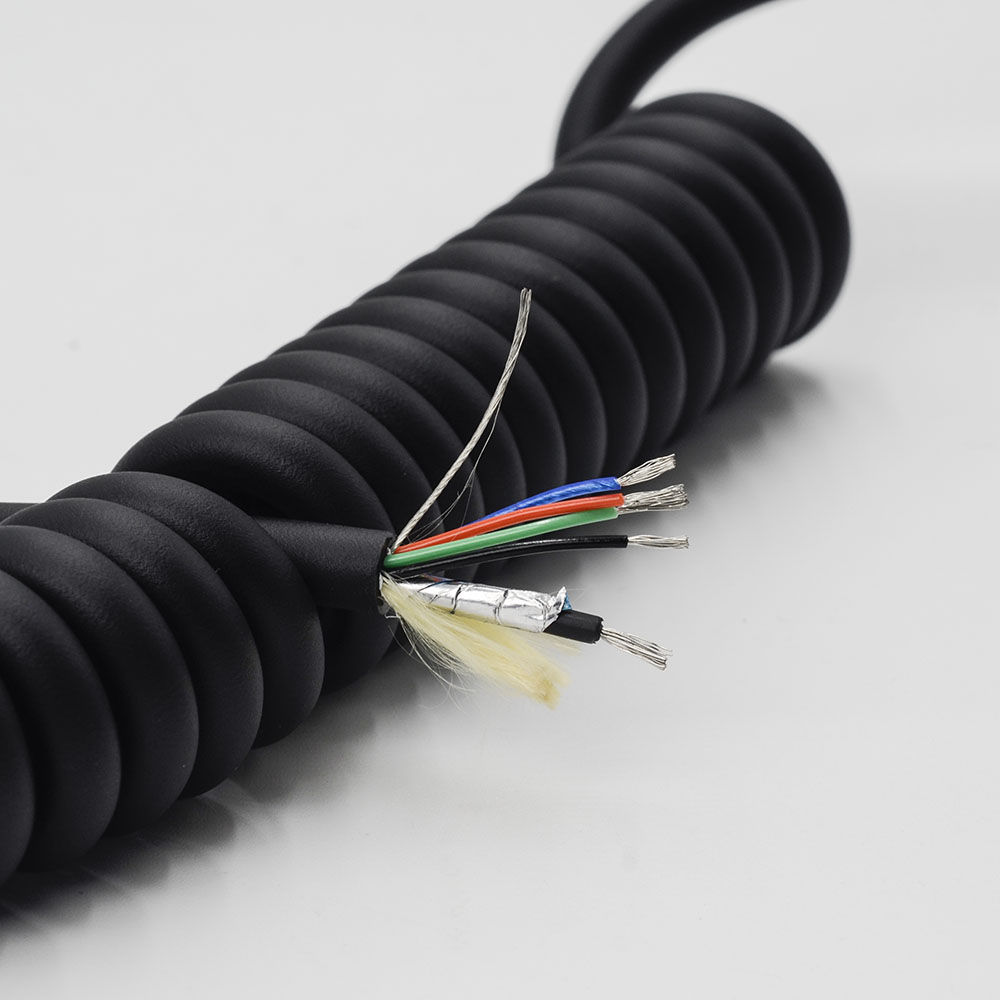

AED 5 lead coil wire-co205x
Developped for" Automated External Defibrillator"
Technical Specification
| Conductor | Material | Tinned copper (2C)22AWG | Tinned copper (4C)26AWG | ||
| Construction | 19/0.16TC | 19/0.10TC | |||
| Outer diameter | 0.8mm Ref | 0.50mm Ref | |||
| Insulator | Material | TPR | PP | ||
| Average Thickness | 0.76 Ref | 0.25 Ref | |||
| Min Thickness | 0.60 Ref | 0.20 Ref | |||
| Outer diameter | φ2.3±0.08 | φ1.0±0.05 | |||
| Color | Black | Green/Blue/Black/Orange | |||
| wrap | Material | Aluminum Foil(outwards) | Right | ||
| Diameter | 2.35 | ||||
| Cabling | Direction pitch | Right/45±7mm | |||
| Filler | Drain wire(26AWG)+kevlar+Nylon+PTFE(25%) | ||||
| Outer diameter | φ4.05mm Ref | ||||
| Outer Jacket | Material | TPU 85A( Biocompatible) | |||
| Average Thickness | 1.27mm Ref | ||||
| Min Thickness | 1.0 Ref | ||||
| Outer diameter | φ6.35±0.25 | ||||
| Color/Cosmetic | BLACK/smooth and matt | ||||
| Properties | |||||
| ITEM | SPECIFICATION | ||||
| Conductor Resistance(@20°c) | 22AWG-60Ω/KM MAX 26AWG-131Ω/KM MAX | ||||
| Insulation Resistance(@20°c) | 500 M Ohms/km, min | ||||
| Dielectric Strength | 22AWG-15000V DC /1 Min 26AWG-3400V DC /1 Min | ||||
